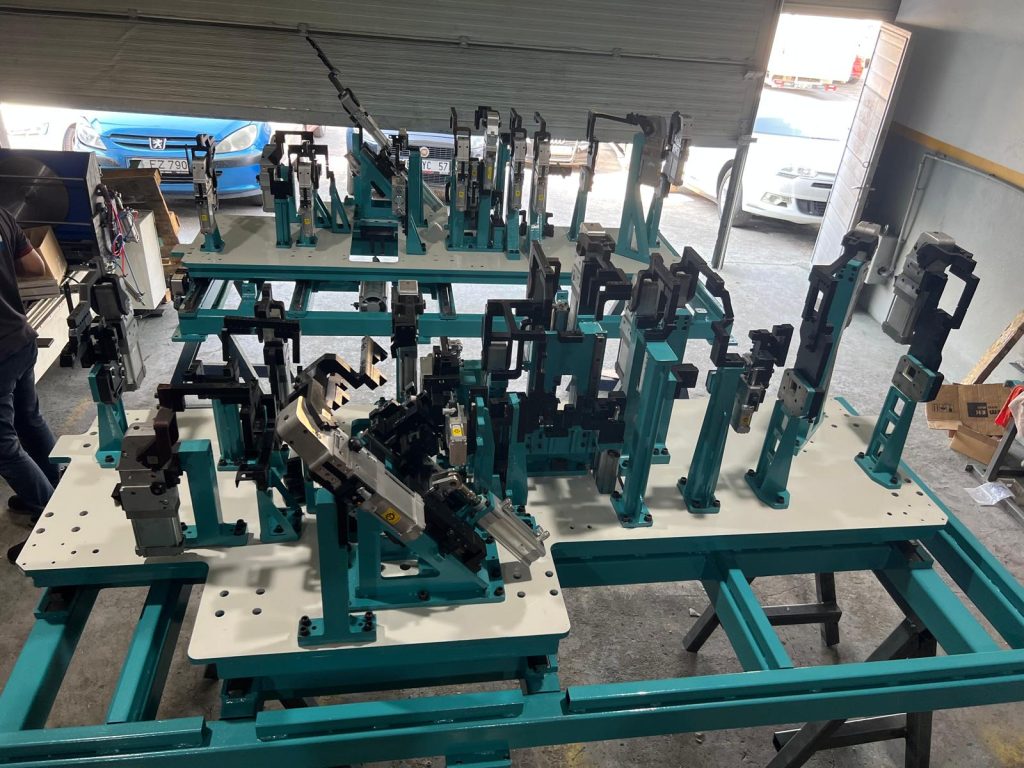

At FABALP Makine, we are proud to have successfully completed our movable spot welding fixture project. This system, whose design, analysis, production, and commissioning were all carried out entirely in-house, was specially developed to increase the efficiency of welding operations and reduce operator dependency on the production line.
🔧 Project Technical Summary
This special fixture was designed as a system that moves on linear rails instead of a fixed platform. The fixture body moves forward and backward on bottom rails using pneumatic pistons, automatically reaching the welding position. The system is optimized for high-precision positioning and repeatability.
🛠️Technical Specifications:
- Fixture Type: Movable spot welding fixture
- Rail System: Linear guides and carriages (compatible with HIWIN / THK)
- Drive: Double-acting pneumatic piston system
- Body Material: ST52 steel construction
- Positioning Tolerance: ±0.1 mm
- Operation Mode: Semi-automatic (manual part placement, automatic positioning)
- Application Area: Sheet metal body welding line
📐 Design and Simulation Process
All movement scenarios of the fixture were modeled in 3D during the CAD-based design process, and collision analyses were conducted in different positions. Additionally, using Process Simulate, robot reach checks, spot alignment, and clamping sequences were tested in a digital environment.
🏭 Manufacturing and Commissioning
The manufacturing process included:
- Welded body construction
- Machining of mounting surfaces for rails
- Installation of linear system and pneumatic pistons
- Painting and masking of protected surfaces
- In-house testing and stroke verification
- On-site commissioning and operator training
After completing all checklists, the system was commissioned in the customer’s production line and actively put into use.
💡 Why Use a Movable Spot Welding Fixture?
Unlike standard fixed fixtures, movable welding fixtures offer the following benefits:
✅ Access to multiple welding points from a single station
✅ Improved operator comfort and space usage
✅ Enhanced cycle time
✅ Adaptability to flexible production setups
✅ Better alignment and improved welding quality
🌍 Application Areas
Such movable fixture systems are commonly used in the automotive and heavy industry production lines:
🚗 Automotive body welding lines
🚌 Vehicle chassis production
🏗️ Metal frame systems
🦾 Robotic welding cells
